A Circular Antenna Array

A linear circular placement array of isotopic antennae. Here we only deal with a simple circle. Layered circles, slot antennae on a hemisphere can be used tp get an interesting 360 degree lelectronic scanning array for multi-target tracking.

As usual all results: AS IS, no responsibility assumed.

A Circular Array

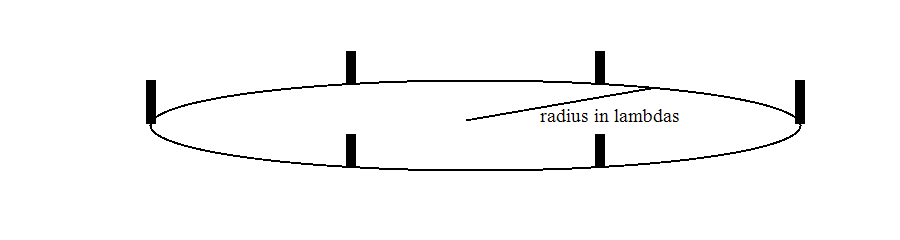

Linear Array Diagram

Basic Array Parameters

The circle radius in lambdas.

The antenna maximum orientation angle in the theta plane

The antenna maximum orientation angle in the phi plane

View the radiation pattern from this angle in z plane

Choose the antenna grouping type

Note:

Only above the theta, phi plane is considered.

The analysis is for a circle of isotropic antenna.
